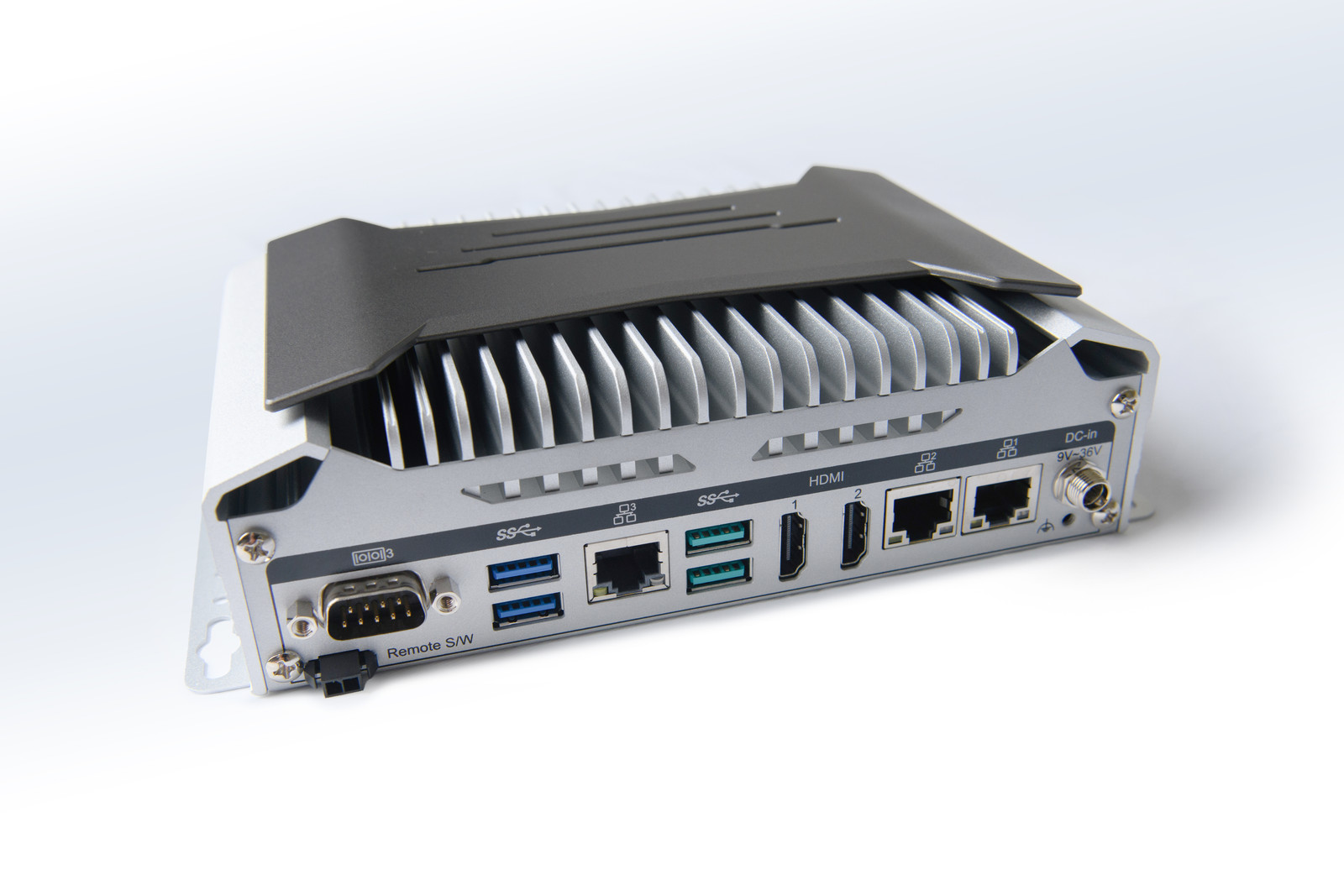

Agilaire’s 8872 data logger is a true digital site platform for all your site needs, including traditional I/O, direct polling of serial/Ethernet-based equipment, and providing a host platform for other required site software such as APICOM, iPort, and more! All of this is controlled by a user-friendly interface familiar to any AirVision user.

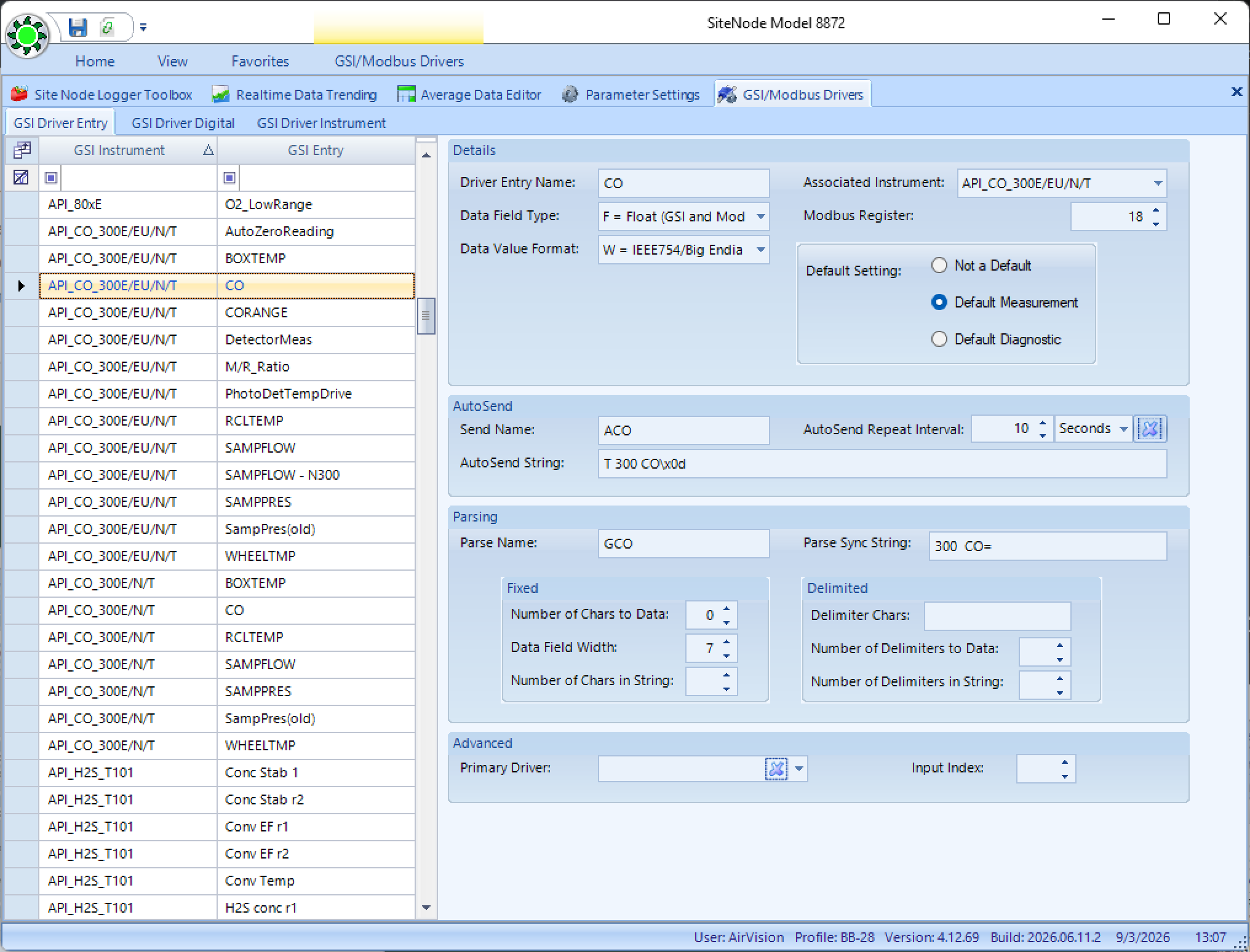

The 8872 ships with a vast library of communication drivers for widely-available instruments from manufacturers like MetOne, Teledyne, Thermo Fisher Scientific, Viasala, and more. Additionally, drivers can be built to your specifications using Agilaire’s flexible configuration system so that you can keep all your existing equipment without compromising on what data you collect.

That flexibility extends to the physical connection. The 8872 supports analog and digital instruments, serial and Ethernet devices, and protocol-driven equipment, all on the same logger. So a shelter holding instruments from four vendors and three product generations doesn’t need four different acquisition systems. And because drivers lives in configuration, adding a monitor or swapping a vendor later is a change you make without replacing the logger.

• Configuration Management – Changes can be done locally or pushed from a central server without needing a site trip.
• Data Annotations – Mark data at the point of collection and carry those notes up to AirVision.
• Site Logbook – Manage and categorize indelible entries that can be backed up to a central AirVision.
• Reports – Generate daily, monthly, and calibration reports on the node directly.
• Third-Party Programs – Host APICOM, NumaView, and other analyzer-specific programs on the same machine.

Agencies are right to ask what a Windows-based platform means for uptime. We asked it too, and spent two years on design and testing before shipping the 8872 — hardening the platform, isolating the real-time acquisition processes from everything else running on the box, and validating it against the standard our 8816 and 8832 loggers set over three decades of continuous field service.

The result is a site platform that gives you the flexibility of a PC without asking you to accept a PC’s failure modes. That distinction is the reason the 8872 belongs in a different category than the general-purpose “PC-based loggers” it gets compared to.

• Dimensions – 5.25″ H × 17″ W × 17″ D · 19″ rack mount ears
• Power – 120 VAC, 30 watts
• Operating Temp. – 0 to 50 °C
• Inputs / Outputs
  • Four (4) RS-232 ports, expandable to 32
  • Ethernet port (10/100)
  • Up to 24 voltage inputs (150 mV, 1 V, 5 V, 10 V ranges)
  • Up to 18 status inputs
  • Up to 18 relay outputs (5 A)Additional external and remote I/O available
• Data Storage – Up to 20,000,000 data points active; up to 100,000,000 in archive files
• Communications – Telephone modem, satellite, TCP/IP, wireless IP, local WiFi terminal connection
• User Connections – Ethernet · HDMI video · USB input
• Compatibility – Plug-compatible with ESC Model 8816 and 8832 · serial 8832 emulation for legacy dial-up polling
